The SCOTT Roxter 16 is our truly functional bike for smaller riders who like a race inspired style.

Please note that bike specifications are subject to change without prior notice

SPECIFICATIONS

FRAME

JR16 Coaster
Alloy 6061 / Bended TT
Semi int. HT / Rigid Fork
FORK

BMX Type / rigid
HiTen / 16" / V-Brake Pivot
CRANKSET

One Piece Crank / 28T
BB-SET

Steel / loose ball bearings

CHAIN

KMC S1
CASSETTE

18T
BRAKE LEVERS

Kids Lever Alloy
BRAKES

F: V-Brake R: Coaster
HANDLEBAR

Junior mini Riser bar
500mm
H'STEM

Ahead / Alloy / 30mm / 25.4mm clamp
SEATPOST

Alloy 26.8x200mm
SEAT

Syncros Roxter JR16
HEADSET

Semi integrated 1 1/8"
HUB (FRONT)

KT-183F / 20H / Nutted
HUB (REAR)

KT-305RB / 28H / Nutted
Coaster brake
SPOKES

15g UCP / black
RIMS

Alloy / black / 20H/28H / A/V
FRONT TIRE

Kenda K841 Contact / 16x2.25"
REAR TIRE

Kenda K841 Contact / 16x2.25"
PEDALS

MARWI SP-201 / 1/2" / w/Reflector
EXTRAS

Kickstand / Full-chainguard
ACCESSORIES

Syncros Stem Protector
APPROX WEIGHTS IN KG

8.20
APPROX WEIGHTS IN LBS

18.08
MAX. SYSTEM WEIGHT

50 kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.

GEOMETRY

INCHES

		16''
A	HEAD TUBE ANGLE	70.0 °
B	HEAD TUBE LENGTH	3.5 IN
C	TOP TUBE HORIZONTAL	15.6 IN
D	STANDOVER HEIGHT	17.8 IN
E	BB OFFSET
F	BB HEIGHT	4.1 IN
G	WHEEL BASE	28.3 IN
H	BB CENTER TO TOPTUBE CENTER	6.1 IN
I	BB CENTER TO TOP OF SEATTUBE	8.3 IN
J	SEAT ANGLE	70.0 °
K	CHAINSTAY	11.4 IN
L	REACH	10.9 IN
M	STACK	12.8 IN
N	STEM LENGTH
0	TRAIL

SPECIFICATIONS

FRAME

FORK

CRANKSET

BB-SET

CHAIN

CASSETTE

BRAKE LEVERS

BRAKES

HANDLEBAR

H'STEM

SEATPOST

SEAT

HEADSET

HUB (FRONT)

HUB (REAR)

SPOKES

RIMS

FRONT TIRE

REAR TIRE

PEDALS

EXTRAS

ACCESSORIES

APPROX WEIGHTS IN KG

APPROX WEIGHTS IN LBS

MAX. SYSTEM WEIGHT

GEOMETRY

Scott & Puky

Price

Collections

SCOTT Boy's Roxter Junior 16" - Orange

SCOTT Kid's Roxter 24

SCOTT Kid's Scale 200

SCOTT Kid's Contrail 160

PUKY Kid's Ls-Pro 16

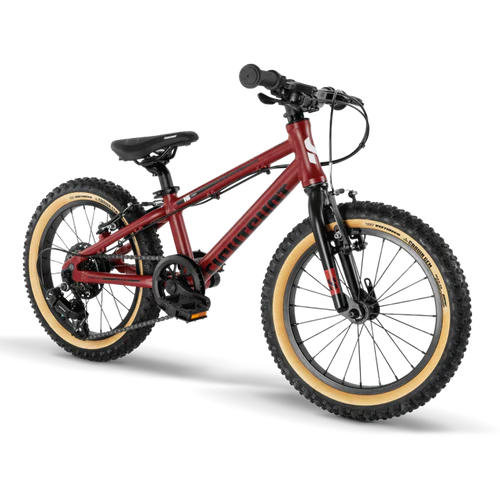

PUKY Kid's X-Coady 16 Mountain Bike
