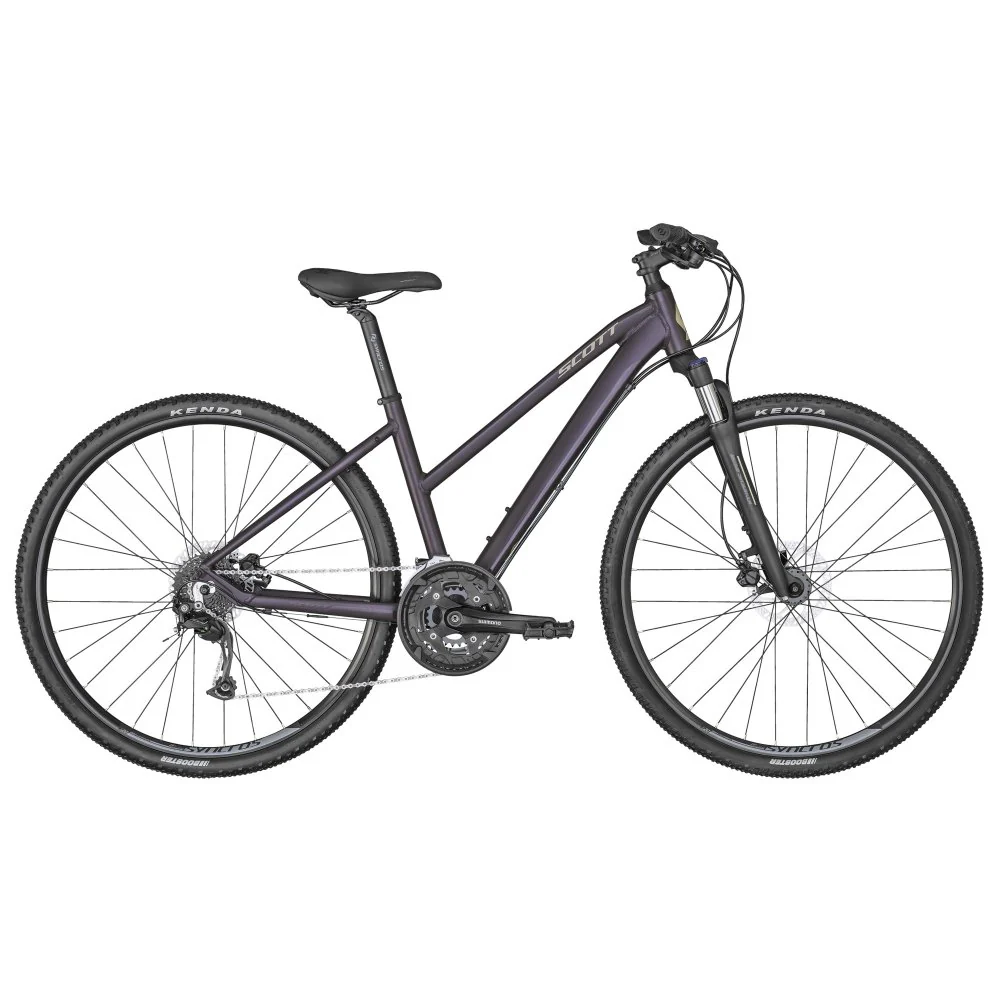

• The SCOTT SUB Cross 30 emphasizes comfort and convenience for touring and transportation. Equipped with a lockout fork and Syncros components, the SUB Cross is set up perfectly for your excursions.

  Please note that bike specifications are subject to change without prior notice



SPECIFICATION:

• FRAME

  Sub Cross Alloy 6061 / Custom butted tubing / Sub Cross Men/Lady geometry / SCOTT urban kit ready

• FORK

  SR Suntour NEX HLO / Hyd. Lockout / 63mm travel

• REAR DERAILLEUR

  Shimano Alivio RD-M3100 / 27 Speed

• FRONT DERAILLEUR

  Shimano FD-M370 / 34.9mm

• SHIFTERS

  Shimano SL-M2010-9 / R-fire plus / w/gear indicator

• CRANKSET

  Shimano FC-T4010 / 48x36x26 / w/CG

• BB-SET

  Shimano BB-ES300 / Cartridge Type

• CHAIN

  KMC X9

• CASSETTE

  Shimano CS-HG200-9
  11-32 T

• BRAKES

  Tektro HDM275 Hydr. Disc

• ROTOR

  Tektro / 6 bolts / F&R 160mm

• HANDLEBAR

  Syncros 3.0 / 31.8 / Men: Tbar/660mm/9° bend / Lady: 660mm/15° bend

• H'STEM

  Syncros 3.0 / 7° / Black

• SEATPOST

  Syncros 3.0 / 31.6mm / 350mm / Black

• SEAT

  Syncros UC3.0 / UC3.0W

• HEADSET

  Syncros OE Press Fit / 1 1/8"
  OD 50mm / ID 44mm

• HUB (FRONT)

  Formula DC-19 FQR Disc

• HUB (REAR)

  Formula DC-25 RQR Disc

• SPOKES

  14g / stainless / black

• RIMS

  Syncros X-20 Disc / 32H / black

• FRONT TIRE

  Kenda Booster / 700x45C / 30 TPI

• REAR TIRE

  Kenda Booster / 700x45C / 30 TPI

• PEDALS

  Feimin FP-873-ZU

• APPROX WEIGHT IN KG

  13.94

• APPROX WEIGHT IN LBS

  30.73

• MAX. SYSTEM WEIGHT

  128 kg
  The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
